AIRTROL稳压阀R-900系列介绍
R-900系列稳压器专为需要小型化、轻量化和精度的应用而设计。10-32个端口可容纳各种微型配件，包括 Airtrol Components B-062和B-125倒钩配件。

特征：
20转无滞后调节允许压力设置为1" WC分辨率。

四种调整样式可实现*大的设计灵活性。不上升的阀杆可配置一个有吸引力的旋钮或平面，允许安装OEM旋钮。还提供齐平调节轴，适用于压力设置变化不那么频繁的应用。还提供工厂预设的“防篡改”型号。

三种安装选项包括面板安装，通过 9/16" 孔（包括螺母）和底座安装，通过4个直径为 0.125" 的孔。

塑料结构——耐腐蚀的接液材料。

高精度 - 电源变化对输出的影响很小。

低成本 – 非常适合 OEM 应用。

The R-900 Series regulators are designed for applications requiring miniature size, light weight, and precision. 10-32 ports accommodate a wide range of miniature fittings, including Airtrol Components B-062 and B-125 barbed fittings.

FEATURES:
Twenty turn hysteresis free adjustment allows pressure settings to 1″ WC resolution.

Four adjusting styles allow maximum design flexibility. The non-rising stem is available with an attractive knob, or plain, allowing installation of OEM knobs. Also available is a flush adjusting shaft, for applications where pressure setting is changed less frequently. Factory pre-set “tamperproof” models are also available.

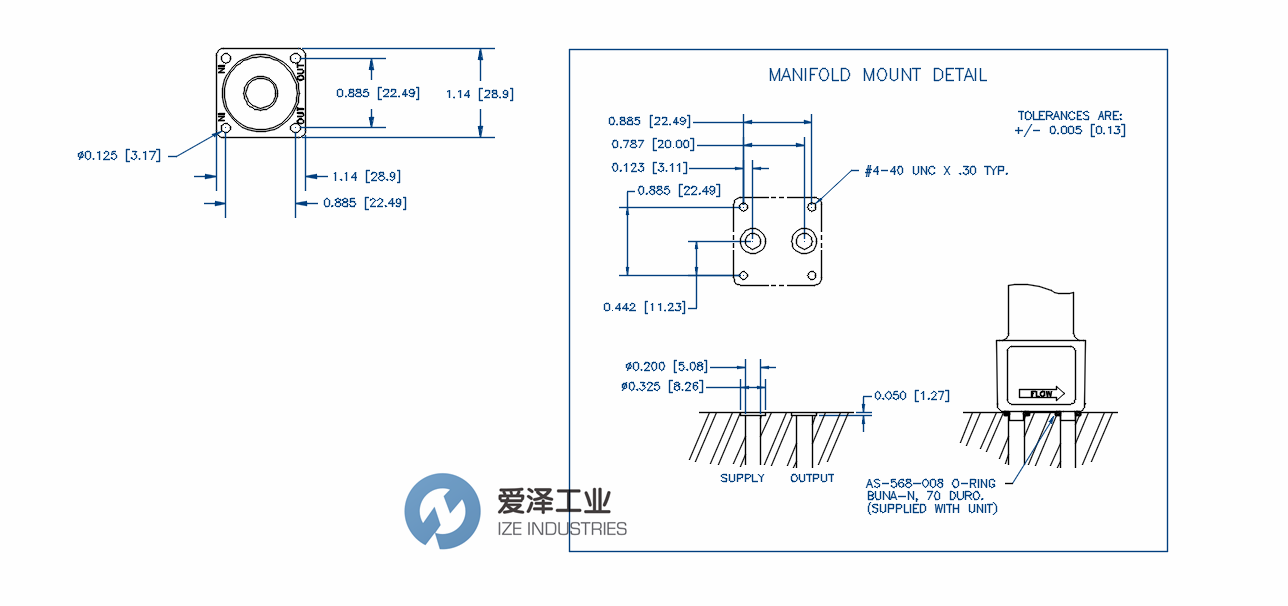

Three mounting options include panel mount, through a 9/16″ hole (nut included), and base mount, through 4 holes 0.125″ dia. and manifold mount(See drawings)

Plastic construction – corrosion resistant wetted materials.

High accuracy – Low effect of supply variation on output.

Low cost – Perfect for OEM applications.

AIRTROL稳压阀R-900系列选型
AIRTROL稳压阀R-900系列安装尺寸

AIRTROL稳压阀R-900系列技术规格


AIRTROL调节器R-900系列其他常用型号：
AIRTROL R-900-60-W/K
AIRTROL R-900-60W/S
AIRTROL R-900-30
AIRTROL R-900-10W/OS
AIRTROL R-900-60-W/K
AIRTROL R-900-90W/OS
AIRTROL R-900-60W/S
AIRTROL R-900-3.5W/K
AIRTROL R90090WK
AIRTROL R-900-60W/OS
AIRTROL R-900-3.5W/S
AIRTROL R-900-30W/OS
AIRTROL R-900-10W/S
AIRTROL R-900-10W/K
AIRTROL R-900-90
AIRTROL R-900-30-W/K-B85
AIRTROL R-900-90W/S
AIRTROL R-900-3.5W/OS
AIRTROL R-900-30W/S
AIRTROL R-900-30-W/K
AIRTROL R-900-10
AIRTROL R-921-15
