FILTERMIST过滤器2300AFA产品参数

FILTERMIST过滤器产品介绍

描述

2300AFA/AFB 后过滤器专为连接 Filtermist S400 和 S800 油雾过滤装置而设计。

后过滤器旨在去除油烟以及通过 Filtermist 油雾收集器后仍残留的亚微米颗粒。这些后过滤器可以便捷地安装在 Filtermist 设备的排气端，采用夹子固定到位。

后过滤器是一种媒体过滤筒，通过形成物理屏障，使空气必须通过过滤材料。其使用寿命取决于具体应用，对于产生烟雾或非常细的油粒的场合，建议安装后过滤器以确保过滤效果。

过滤器由连续折叠的过滤介质制成，顶部为注塑成型的端盖，底部为整体成型的基座，带有一体成型的钩子。折叠的滤料外侧由铝网支撑。基座周围设有泡沫密封，以确保空气通过滤料。该结构轻便且坚固，适用于各种工业环境。

DESCRIPTION

The 2300AFA/AFB is specifically designed for connection to the Filtermist S400 & S800 Oil Mist Filtration Units.

Afterfilters are designed for the removal of oil smoke and any submicron particles that have passed through the Filtermist oil mist collector unit. The afterfilters are retrofitted to the Filtermist unit and fit easily over the exhaust end of the unit using clips to hold it in place.

The afterfilter is a media type filter cartridge creating a physical barrier through which the air must pass,. The filters’ life depends on the application and any application producing smoke or very fine oil particles should be fitted with an afterfilter.

The filters are contructed of filter media formed into continuous pleats, injection moulded end cap at the top and a fully moulded base with integrally moulded hooks. The pleated media is then supported by aluminium mesh on the outside. There is a foam seal around the base to ensure the air flow passes through the media filter. This construction makes it very light and robust.

FILTERMIST过滤器其他常见型号：

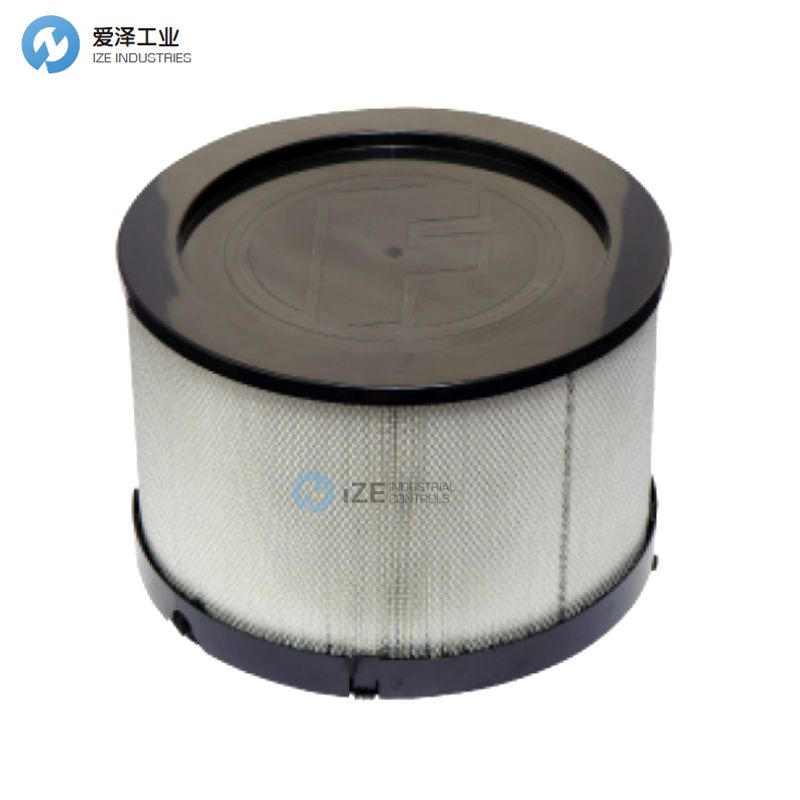

FILTERMIST 2300AFA

FILTERMIST 2300AFB

FILTERMIST 2300FKT
