如下为我司爱泽工业IZE_Industries本月到货ACCU-CODER相关产品，欢迎致电索取样本资料和产品信息。

ACCU-CODER编码器711-0250-S-IND12-6-S-S-Y

ACCU-CODER编码器725I-S-S-6000-Q-HV-5-F-1-SX-N-CE-SPEC711

ACCU-CODER编码器725I-S-S-30000-Q-HV-5-F-1-SX-N-CE

ACCU-CODER编码器260-N-T-02-S-3600-R-PP-1-K00-FB-2-N

ACCU CODER编码器TR1-U1R4-1200NV1QPU-M00





ACCU-CODER编码器711系列介绍

Accu-Coder® 711 型是业界标准的原始立方体编码器。它与大多数可编程控制器、电子计数器、运动控制器和电机驱动器兼容，是需要单通道格式的简单、对称、单向方波输出的应用的理想之选。针对*常用的分辨率，它具备关键的性能指标，并采用先进的 Opto-ASIC 电路——单芯片设计，省去了许多板级元件——进一步提升了这款原本就可靠耐用的编码器的可靠性。随着新功能的不断推出，711 型编码器在各种工业应用中都表现出色。



• 业界标准的原始立方体编码器

• 五种多功能外壳样式

• 单向输出

• 分辨率*高可达 10,000 CPR



The Model 711 Accu-Coder® is the original, industry-standard cube encoder. Designed for compatibility with most programmable controllers, electronic counters, motion controllers, and motor drives, it is ideally suited for applications that require a simple, symmetrical, uni-directional square wave output in a single channel format. Critical performance specifications for the most popular resolutions and advanced Opto-ASIC circuitry — a single chip design that eliminates many board level components — increases the reliability of an already dependable and durable encoder. With new options continually being added, the Model 711 excels in a wide variety of industrial applications.



• The original industry-standard cube encoder

• Five versatile housing s

• Unidirectional output

• Resolutions available to 10,000 CPR

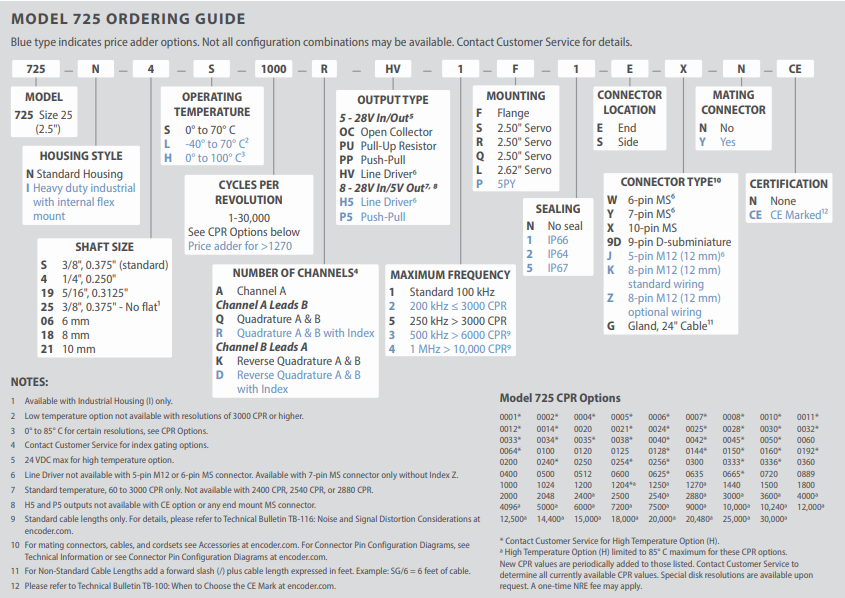

ACCU-CODER编码器725系列介绍

725 型 2.5 英寸 Accu-Coder® 光学轴编码器专为应对工业环境的挑战而设计，分辨率高达每转 30,000 次。725 型编码器提供法兰和伺服两种安装方式，并有两种不同的外壳样式可供选择：



标准外壳 (N)：

坚固耐用的标准外壳 (N) 可将内部电子元件与外部环境的冲击和应力隔离开来。



工业外壳 (I)：

超重型工业外壳 (I) 采用完全隔离的内部编码器单元。这种隔离设计利用内部柔性安装座保护编码器免受严重的轴向和径向轴载荷，从而延长轴承寿命。对于承受持续侧向载荷的应用，例如使用测量轮、皮带轮或链轮驱动编码器的应用，工业外壳是推荐的解决方案。



• 标准尺寸 25 封装 (2.5 英寸 x 2.5 英寸)

• 高达每转 30,000 次

• 标准外壳和工业外壳

• 伺服安装法兰安装

• 提供 IP67 防护等级

• 提供超重型工业外壳



The Model 725 2.5" Accu-Coder® optical shaft encoder is specifically designed for the challenges of an industrial environment offering resolutions up to 30,000 cycles per revolution. The Model 725 offers both flange and servo mounting options, and is available in two distinctive housing s:



Standard Housing (N):

The rugged Standard Housing (N) isolates the internal electronics from the shock and stress of the outer environment.



Industrial Housing (I)

The extra-heavy-duty Industrial Housing (I) features a fully isolated internal encoder unit. That isolation prolongs bearing life by using an internal flexible mount to protect the encoder from severe axial and radial shaft loading. The Industrial Housing option is the recommended solution for applications subject to continuous side loads, such as those that drive the encoder with a measuring wheel, pulley, or chain and sprocket.



• Standard Size 25 package (2.5" x 2.5")

• Up to 30,000 CPR

• Standard and industrial housings

• Servo and flange mounting

• IP67 sealing available

• Available with extra-heavy-duty industrial housing

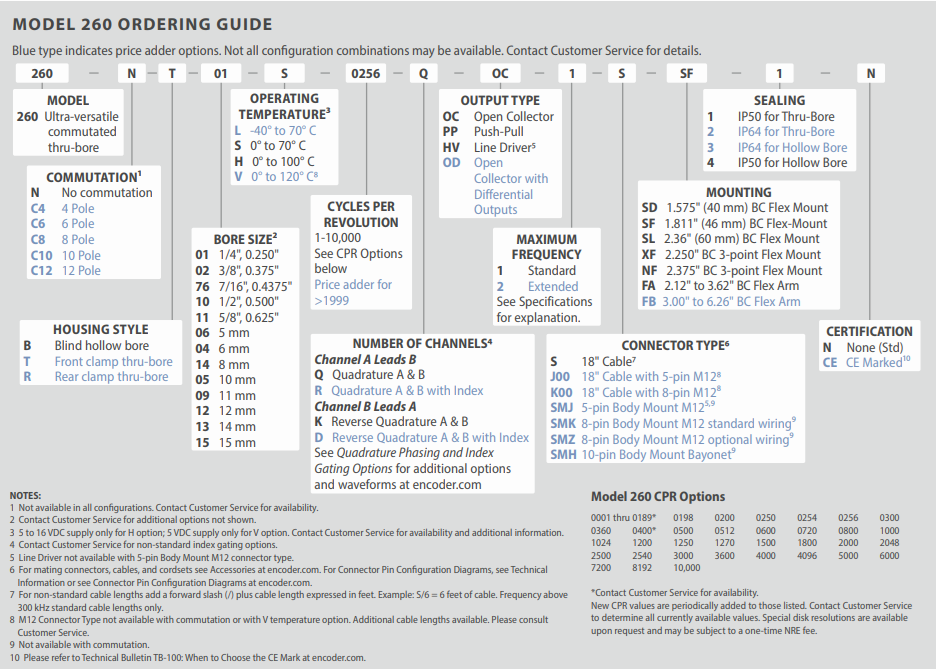

ACCU-CODER编码器260系列介绍

260 型编码器拥有更大的孔径（*大可达 0.625 英寸）和低矮的外形，是众多机械和电机应用的理想之选。260 型编码器提供两种不同的规格——盲孔式和通孔式——并采用 EPC 的创新型 Opto-ASIC 设计。此外，260 型编码器还采用了 EPC 的创新型防反冲安装系统，可实现简单、可靠且精确的编码器安装。与传统的套件式或模块化编码器设计不同，其集成轴承组可提供稳定一致的运行，无需担心轴向或径向轴跳动。对于无刷伺服电机应用，260 型编码器可配置三个 120° 电气相轨，以提供高达 12 极的换向反馈。可选的扩展温度范围允许伺服电机在高功率输出和占空比下运行。



• 低矮外形，1.19 英寸

• 高达 12 极的换向

• 通孔式和盲孔式两种规格

• 简单、创新的灵活安装系统

• 集成 Opto-ASIC技术

• 可提供 CE 认证



The Model 260’s larger bore (up to 0.625") and low profile make it the perfect solution for many machine and motor applications. Available in two distinct formats – a blind hollow bore and a complete thru-bore – the Model 260 uses EPC’s pioneering Opto-ASIC design. The Model 260 also uses EPC’s innovative anti-backlash mounting system, allowing simple, reliable, and precise encoder attachment. Unlike traditional kit or modular encoder designs, its integral bearing set provides stable and consistent operation without concerns for axial or radial shaft runout. For brushless servo motor applications, the Model 260 can be specified with three 120° electrical phase tracks to provide up to 12-pole commutation feedback. The optional extended temperature capability allows servo motors to operate at higher power outputs and duty cycles.



• Low profile 1.19"

• Up to 12-pole commutation

• Thru-bore and blind hollow bore s

• Simple, innovative flexible mounting system

• Incorporates Opto-ASIC technology

• CE marking available

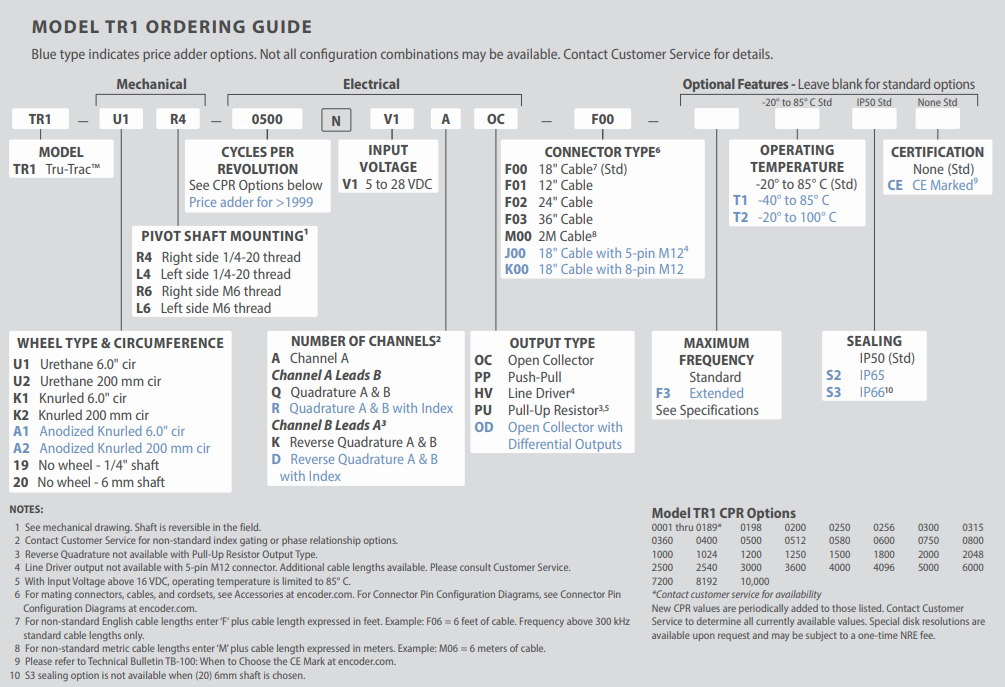

ACCU-CODER编码器TR1系列介绍

Tru-Trac® TR1 型线性测量解决方案是一款用途广泛的测量设备，可用于在各种表面上跟踪速度、位置或距离。TR1 型将编码器、测量轮和弹簧式扭力臂集成在一个紧凑的单元中，安装简便。弹簧式扭力臂提供可调节的扭力负载，使 TR1 型几乎可以以任何方向安装——即使是倒置安装。枢轴上的螺纹轴可在现场反转，方便从两侧进行安装。TR1 型 Tru-Trac® 的运行速度高达每分钟 3000 英尺，提供多种配置选项（包括多种轮子材料选择），并且外壳采用耐用的导电复合材料制成，可*大限度地减少静电积聚，是众多应用的优选。



• 编码器、测量轮和弹簧式扭力臂集成于一个紧凑的单元中

• 弹簧式扭力臂使轮压调节变得轻而易举

• 可轻松垂直、水平或倒置安装

• 可在多种表面上以高达每分钟 3000 英尺的速度运行

• 集成模块简化了系统设计，降低了成本



The Model TR1 Tru-Trac® linear measurement solution is a versatile option for tracking velocity, position, or distance over a wide variety of surfaces. An integrated encoder, measuring wheel, and spring-loaded torsion arm in one, compact unit, the Model TR1 is easy to install. The spring-loaded torsion arm offers adjustable torsion load, allowing the Model TR1 to be mounted in almost any orientation – even upside-down. The threaded shaft on the pivot axis is field reversible, providing mounting access from either side. With operating speeds up to 3000 feet per minute, a wide variety of configuration options – including multiple wheel material options – and a housing made from a durable, conductive composite material that minimizes static build up, the Model TR1 Tru-Trac® is the ideal solution for countless applications.



• Encoder, measuring wheel & spring loaded torsion arm integrated into one compact unit

• Spring-loaded torsion arm makes wheel pressure adjustments a snap

• Easily installed in a vertical, horizontal or upside down orientation

• Operates over a variety of surfaces at speeds up to 3000 feet per minute

• Integrated module simplifies your system design, reducing cost





ACCU-CODER编码器常用型号：

ACCU-CODER 15H-14SF-0100NV1RPP-F06-CE

ACCU-CODER 15S-23M3-0100NV1APU-J00

ACCU-CODER 15T-01SF-2000N5RHV-K00

ACCU-CODER 1852662 225A-34-0060-PU-F-N-J

ACCU-CODER 25SP-38MA-A1000B5HV-SMK-S3

ACCU-CODER 25T-34SJ-1024NV1DHV-SMX-S3

ACCU-CODER 25TC-05SG-1200NV1R3PP-SMK-S3CE

ACCU-CODER 260-N-R-02-S-1024-Q-HV-1-S/15.00-SF-2

ACCU-CODER 260-N-T-02-S-3600-R-PP-1-K00-FB-2-N

ACCU-CODER 2760967 ,260-N-R-02-S-1024

ACCU-CODER 711-0020-S-S-6-D-S-N

ACCU-CODER 711-0120-S-S-6-S-S-Y

ACCU-CODER 711-0250-S-IND12-6-S-S-Y

ACCU-CODER 711-0600-S-S-6-S-S-N

ACCU-CODER 716-0120-HV-S-4-S-S-Y

ACCU-CODER 725I-S-S-0500-Q-HV-1-F-N-SX-Y-N

ACCU-CODER 725I-S-S-1000-R-OC-1F-N-S-Y

ACCU-CODER 725I-S-S-1500-Q-HV-1-S-1-SY-Y-N

ACCU-CODER 725I-S-S-2540-Q-HV-2-F-1-SX-N-CE

ACCU-CODER 725I-S-S-30000-Q-HV-5-F-1-SX-N-CE

ACCU-CODER 725I-S-S-5000-Q-HV-1-F-N-SY-Y-N

ACCU-CODER 725I-S-S-6000-Q-HV-5-F-1-SX-N-CE

ACCU-CODER 725I-S-S-6000-Q-HV-5-F-1-SX-N-CE-SPEC711

ACCU-CODER 725N-S-S-0200-Q-PU-1-F-1-SG/01.30-N-N S491

ACCU-CODER 725N-S-S-5000-Q-HV-5-F-N-SY-Y-CE

ACCU-CODER 770AH1000-QHVDPYNN

ACCU-CODER 776-A-H-1024-R-HV-I-X-A-Y-N

ACCU-CODER SL-770AH0250-QHVDPYNN

ACCU-CODER TR1-U1L4-1200NV1RHV-K00

ACCU-CODER TR1-U1R4-1000NV1QHV-K00-S2CE

ACCU-CODER TR1-U1R4-1000NV1QPP-J00

ACCU-CODER TR1-U1R4-1200NV1QPU-M00

ACCU-CODER TR1-U1R4-1800NV1RPU-J00

ACCU-CODER TR1-U1R4-2048NV1RHV-K00

ACCU-CODER TR1-U1R6 7200NV1RHV-M00

ACCU-CODER TR1-U1R6-1800NV1QPP-J00-S2



如果您需要完整的ACCU-CODER的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
