兰州500w正弦波逆变器

￥1.00

甘肃兰州

甘肃程浩新能源有限公司

12年

指数：270

工商已认证

店铺推荐

图文详情
产品参数

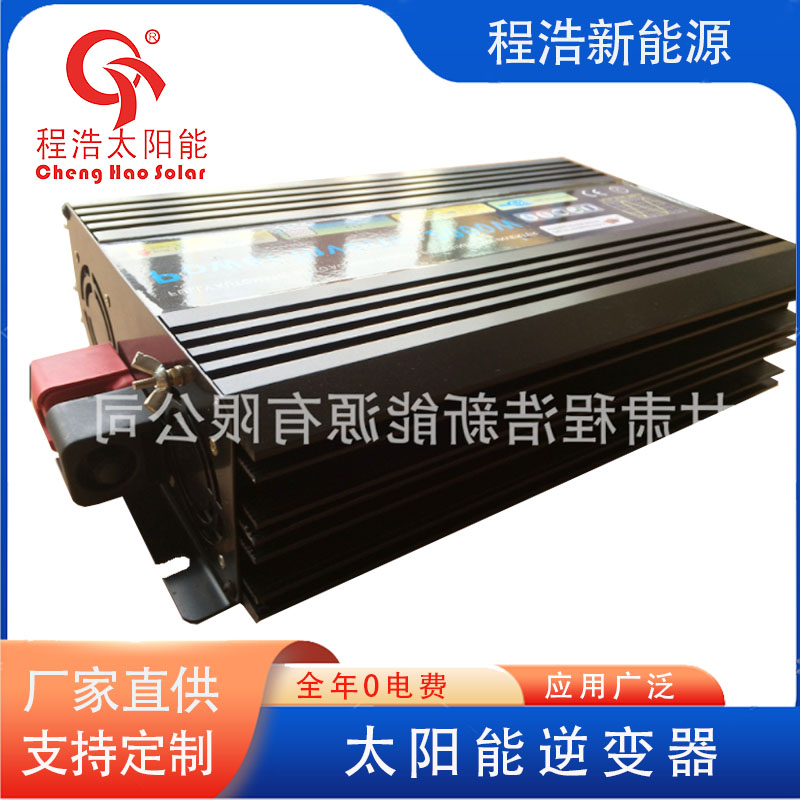

Product Name: 500W Pure Sine Wave Power Inverter

Country of Origin: China

Model: CH-ZXB-500W

Color: Silver /Black

Minimum order: 100 pieces

Delivery Lead Time: 25 Days

Delivery FOB port: China Ningbo port

Payment Condition: T/T

Detail Specifications

Continue Power:500 W Max. Output Surge: 1200 W DC Input Voltage: 12V or 24V or 36v or 48V AC Output Voltage: 110V or 120V or 220V or 230V or 240V

Dimensions (mm): (225+25) x 157 x 75 Weight (kg): 2.5 kg

?Output type:

Wired Remote Control Wireless Remote Control :

?Features :

l Dedicated design for the use of Solar Power Energy.

l Pure Sine Wave

l Wireless Remote Control and Wired Remote Control (Optional)

l Supply USB 5V/500mA

l High temperature alarm and protection system

l Output overloaded alarm and protection system

l Output short circuit alarm and protection system

l High surge capacity for starting demanding loads

l Alarm and protection for low / high battery

?Scope of Application :

Medical Instruments, Emergency Power, Oxygen Concentrators, Cash Register, Home Theater, High-end Stereos, Notebook, Computers, Power Tools, Radios, DVD players, TV s , Musical Instruments, Recording Equipments, Limousines, Buses, RV s, Precision Equipment, Sensitive Radio Equipment, Laser Printers, Fax Machines, etc. USB 5V DC output is for Digital Camera, Cell Phone, Video Game, MP3, MP4, PDA.

?YPS-600 Specifications:

Model		CH-ZXB-500W-12	CH-ZXB-500W-24	CH-ZXB-500W- 36	CH-ZXB-500W-48
Output	Continuous output	500W
	Surge Power	1200W
	AC Voltage	100V / 110V / 115V / 120V / 200V/ 220V / 230V / 240V to be selected
	Regulation	Vrms ± 3%
	Frequency	50Hz or 60Hz
	Wave Form	Pure Sine Wave
	Total Harmonic Distortion	THD＜3%
	USB Output	DC 5V ± 5% 500mA
Input	BatteryVoltage	12V	24V	36V	48V
	DC Current (typ.)	60A	30A	20A	15A
	Low Battery Alarm	10.5V ± 2%	21V ± 2%	31.5V ± 2%	42V ± 2%
	BatteryVoltage Low Stop	10V ± 2%	20V ± 2%	30V ± 2%	40V± 2%
	High Battery	15V ± 2%	30V ± 2%	45V ± 2%	60V ± 2%
	No load current	650mA	350mA	220mA	170mA
	Efficiency	＞85%
Protection	High temperature	Yes
	Short-circuit	Yes
	Overload	Yes
	Input Voltage	Yes
Intelligent Design Heat Auto Control		Fan Start : 42℃± 3 , Fan Stop : 38℃± 3
		High Temperature Shut Down : 63℃±3 , Restart Output : 55℃±3
Indicator		Normally : Green LED Over Temperature: Yellow LEDExceptionally : Red LED
Others		Optional with wireless remote control or without remote control
Mechanical	Dimensions (mm)	225+25 (D) x 157 (W) x 75 (H)
	Weight	2.5 kgs

品牌：	程浩
型号：	CH-ZXB-500W
加工定制：	是
电路拓扑结构：	推挽式
输出电压波形：	正弦波
输出电压范围：	10.5-16 V
输出电压：	220 V
逆变效率：	95 %
