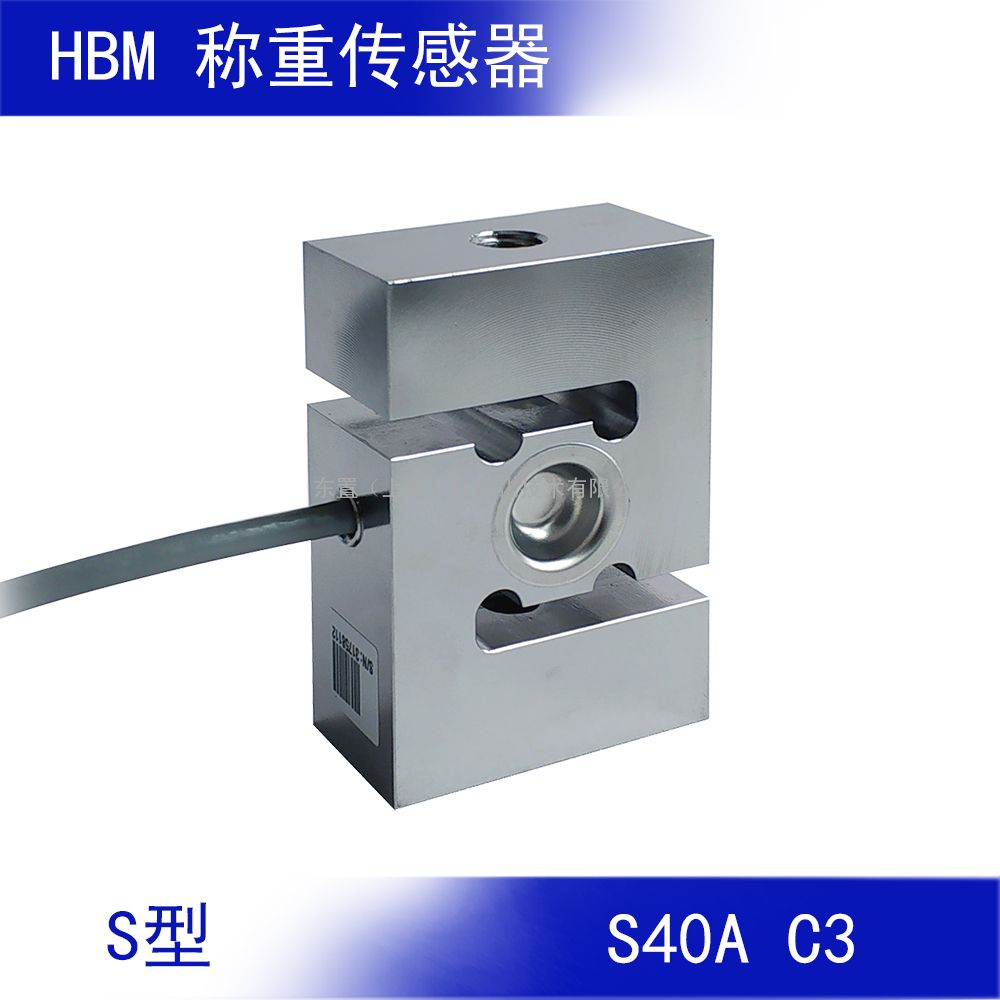

Type  型号S40A

Accuracy Class   精度等级（OIML R60）D1

C3

Minimum LC verification interval (vmin ) *小检定分度值

0.0286

0.0120

Sensitivity (Cn) 灵 敏 度

2.0±0.25

Maximum capacity (E max) 额定量程

kg

50,100,200,500,1000,2000,3000,5000

Nominal Output 额定输出

mV/V

2.00.25%

Temperature effect on zero balance (TK0), (Accuracy class C3)

温度对零点的影响

% of Cn / 10 K

                      ±0.0400

±0.0170

Zero balance 零点平衡

mV/V

0.01

Temperature effect on sensitivity (TK C) 1)

Temperature range:温度对灵敏度的影响

+20 ... +40 °C [+70 ... +105 °F]

−10 ... +20 °C [+15 ... +70 °F]

% of Cn

/ 10 K

±0.0500

±0.0140

Non-linearity (d lin )1) 线性误差

% of Emax

±0.0500

±0.0180

Hysteresis error (d hy )1) 滞后误差

±0.0500

±0.0170

Minimum dead load output return (DR) 蠕变恢复

±0.0500

±0.0245/ 0.0166

Safe load limit (E L) 安全负载

% of Emax

150

Breaking load (E d) 破坏负载

300

Input resistance (R LC) 输入电阻

?6?8

350

Output resistance (R 0) 输出电阻

350±1.5

Insulation resistance (R is) at 100 VDC 绝缘电阻

G?6?8

> 5

Reference excitation voltage (Uref) 参考激励电压

V

5

Max excitation voltage *大激励电压

12

Nominal temperature range (BT) 额定外界温度

° C

−10 ... +40

Service temperature range (B tu) 工作温度

−30 ... +70

Storage temperature range (B tl ) 存储温度

−50 ... +85

Maximum capacity (Emax) 额定量程

50

100

200

500

1000

2000

3000

5000

Deflection at Emax (snom ), approx. *大载荷下变形量

0.15

0.15

0.15

0.15

0.25

0.38

0.38

0.46

Weight (G), approx. 重 量

kg

0.6

0.7

0.7

1.1

1.1

1.7

1.7

2.2

Material 材料

不锈钢

Protection class 保护等级

IP68
