WATLOW
加热棒 G9G-15193
Part #: G9G-15193

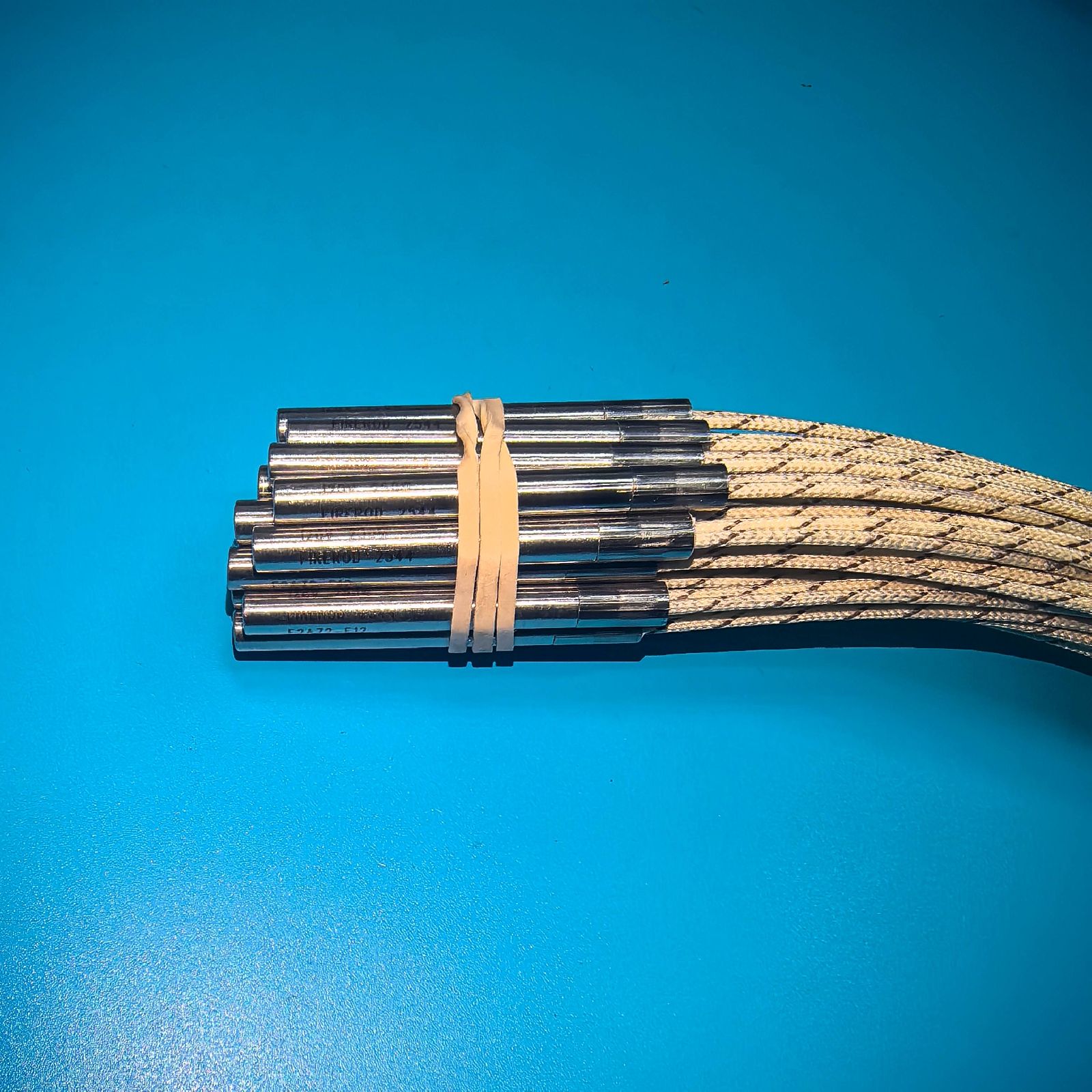

Description: FIREROD Cartridge Heater

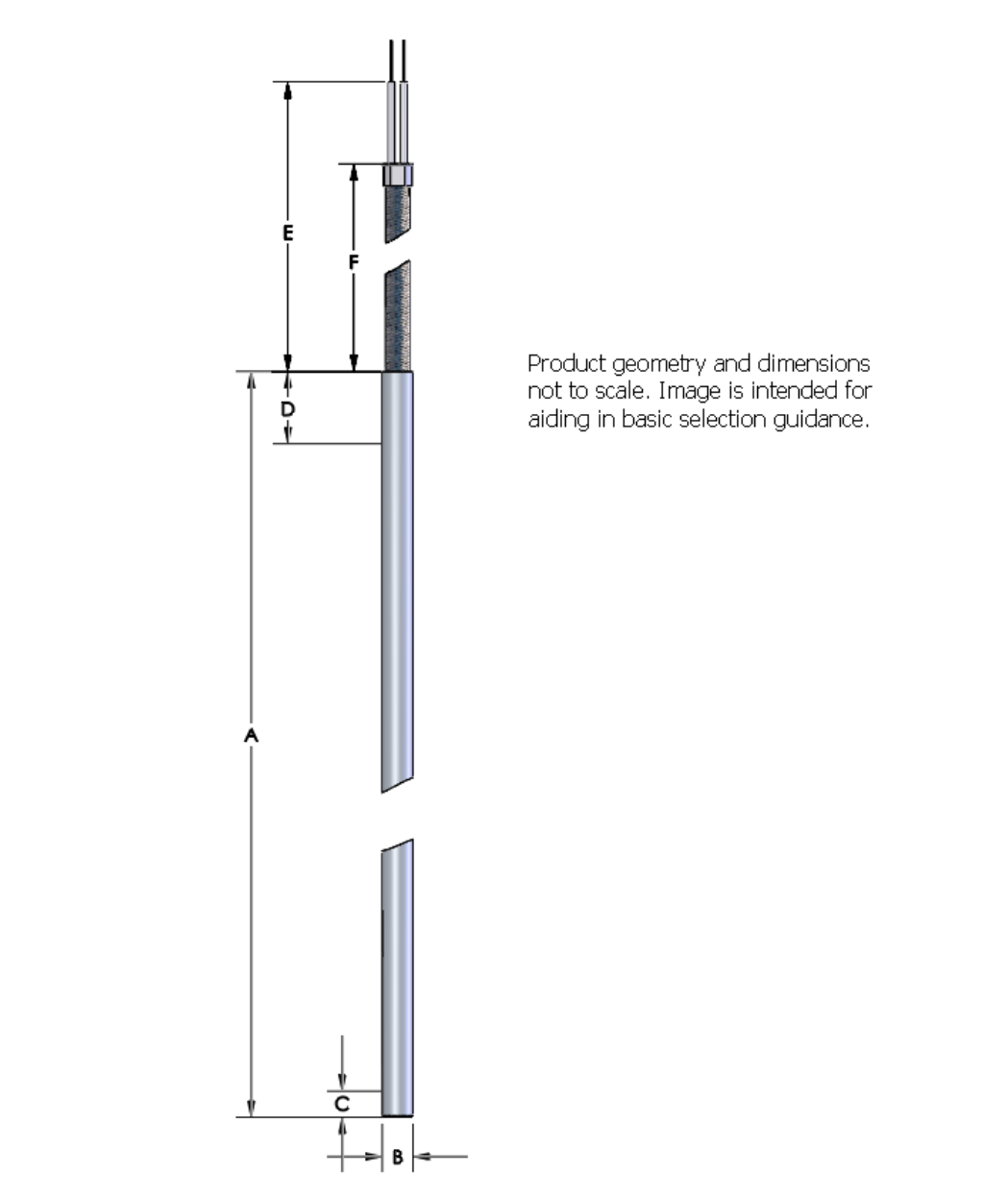

| Diameter (in.) (B) |
.371" +/- .002" |
| Overall Length (in.) (A) |
9.350 |
| Length Tolerance |
+ /- 2% |
| Length Tolerance Options |
+/-2% |
| Voltage (V) |
240 |
| Power (W) |
500 |
| Wattage Tolerance (%) |
+ 5%,- 10% |
| Terminations |
LA Options |
| Protection Option |
N = NO SELECTION |
| Braid Finish with Inner and Outer Heat Shrink |
Standard Crimp Ring |
| End Seal |
No Seal |
| Lead Type |
High Temp (MGT) |
| Lead Length (in.) (E) |
63 |
| LA Style Option |
C = STRAIGHT BRAID |
| Elbow/Coupler Prot. Option |
N = NO SELECTION |
| Protection Length.(in) |
60 |
| Machined Lava....(Y/N)..? |
No |
| Braid Finishing Options: |
Standard Crimp Ring |
| Protection Length (in.) (F) |
60 |
| Machined Lava (Y/N).....? |
No |
| Thermocouple |
No Thermocouple |
| Ground Lead |
No |
| Centerless Grind |
No |
| Sheath Materials |
Alloy 800 |
| Mounting Options |
No Mounting Option |
| LINE 1 |
Watlow |
| LINE 2 |
240V 500W |
| LINE 3 |
FIREROD Date Code |
| LINE 4 |
G9G-15193 |
| LINE 5 |
|
| UL |
No |
| CE |
No |
| VDE |
No |
| CSA |
No |
| Customer Specific Marking |
|
| Lead End No Heat (in.) NOM (D) |
0.750 |
| Disk End No Heat (in.) NOM (C) |
0.25 |
| Watt Density (w/in²) NOM |
51 |
