热电偶 AC-2004428
WATLOW
Part #: AC-2004428
Description: MINERAL INSULATED SENSOR
| MI Sensor Style |
AC Style with Standard Connector |
| Unit of Measure |
IN - English |
| MI Sensor Style |
AC Style Thermocouple |
| Sheath Outside Diameter [in] |
J - .250 Inch |
| Sheath Outside Diameter [in] |
J - .250 INCH |
| Junction Type |
U - Single Ungrounded |
| Junction Type |
U - Single Ungrounded |
| Sheath Material |
F - 316 and 316L SS (Dual Certified) |
| Calibraton Type |
Type J |
| Limits of Error |
Standard Limits |
| Mounting Options |
J - Non-Adjustable Brass 1/8" NPT |
| Mounting Options |
J - Non-Adjustable Compression Brass 1/8" NPT |
| Mounting Options |
J - Non-Adjustable Brass 1/8" NPT |
| Fitting Style |
NB - Non-adjustable Brass |
| Thread |
A - 1/8"NPT |
| Reducer Bushing Material |
Not Required |

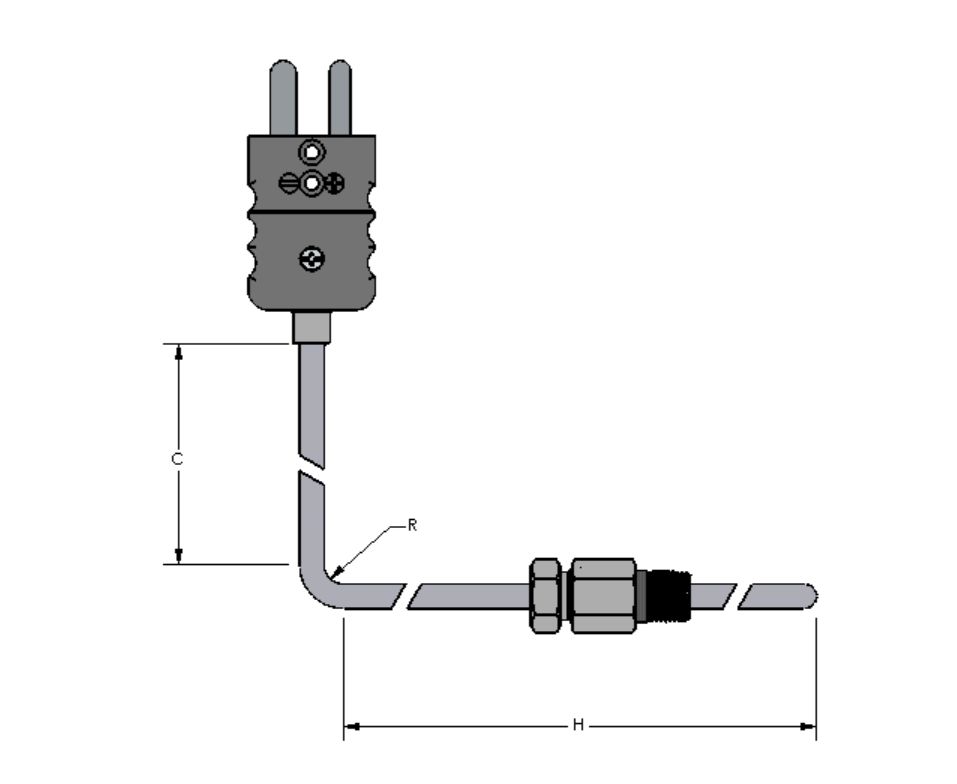

| Bend Option |
Bend 90 Degrees |
| Bend Radius |
.750 |
| Hot Leg Length [in] (H) |
5.750 |
| Cold Leg Length [in] (C) |
2.000 |
| Connector Type |
A - Standard Plug |
| Mating Connector |
No |
| Cold End Seal/Potting |
300°F Epoxy |
| Tag Style |
M - Standard Flag Label |
| Calibrate/Cert Type |
No Certification Required |
| MI Cable Material Cert (Y/N) |
No |
| Serial # Control (Y/N) |
No |
| Lot Control |
NA - None |
| Shipping Code |
5 |
| Shipping Code |
Man Lead Time |
