1、产品概述ProductOverview

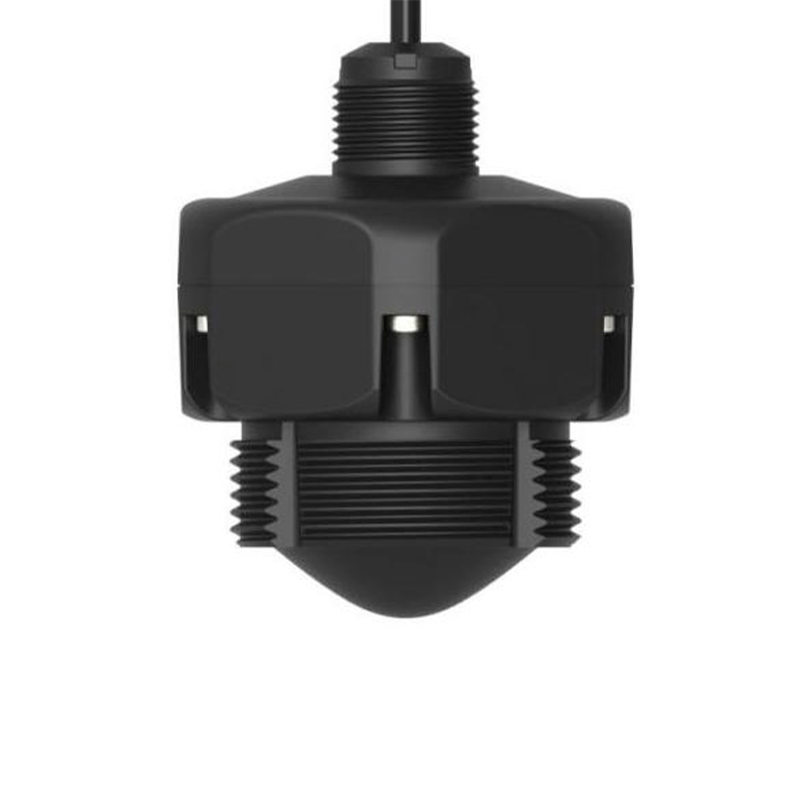

L201系列雷达传感器是专门针对水文检测进行设计的雷达模块。该模块采用FMCW模式,非接触式安装设计,体积小巧,结构紧凑。精度高,功耗低,抗干扰能力强,适用于湖泊河流、山洪预警、蓄水池、污水管网等水位监测。
TheL201seriesradarsensorisaradarmodulespecificallydesignedforhydrologicaldetection.Thismodule adoptstheFMCWmode,featuringanon-contactinstallationdesign.Itiscompactinsizeandhasatightstructure. Itfeatureshighprecision,lowpowerconsumptionandstronganti-interferenceability,andissuitableforwater
levelmonitoringinlakes,rivers,mountainfloods,reservoirs,sewagenetworks,etc.
2、技术参数
测量范围:0.1-20m
测量精度:土3mm
供电电压:9-24VDC
工作温度:-45~85°C
输出信号:RS485
启动时间:100ms*快
天线尺寸:32mm
连接规格:G1%2螺纹连接
分辨率:1mm
特别说明:
雷达外壳出厂默认防水级别为IP67。如果客户需要安装在地下管网类环境,且雷达有经常性、长时间泡水风险,发货前需与我司沟通
强调,将外壳采用全灌胶方式提升为IP68防水等级。
