TDX-01是一种碳分子筛（CMS）色谱填料，它具有碳桥结构和非极性惰性表面，广泛用于氧、氮分离，稀有气体分离，烯烃、无机气体中痕量水的分离,以及硫化物的分离。 TDX-01是以偏二氯乙烯为原料，通过悬液聚合得到聚偏二氯乙烯小球，洗涤干燥后在惰性气体的保护下高温热解得到的。

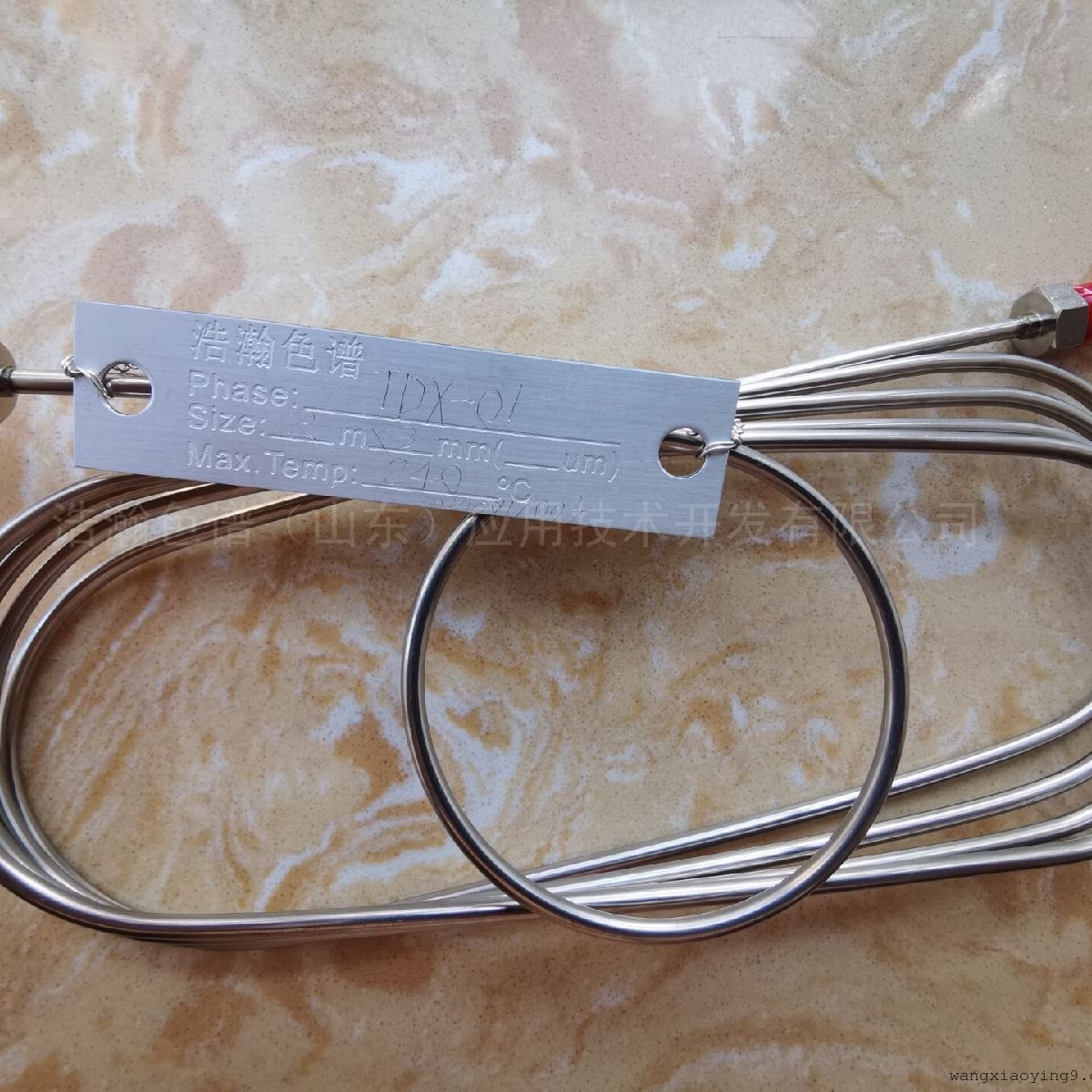

名称：岛津填充柱

型号：TDX-01
规格：2m*3mm
zui高使用温度：240°C

应用：空气，一氧化碳，甲烷，二氧化碳的分离测定



浩瀚色谱（山东）应用技术开发有限公司,研制生产的《岛津2030使用TDX-01色谱柱》安装在安捷伦，赛默飞，瓦里安，布鲁克，PE上测定甲烷，一氧化碳，二氧化碳，取得了不错的效果。





适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓


TDX-01 is a carbon molecular sieve (CMS) chromatographic packing material with a carbon bridge structure and non-polar inert surface. It is widely used for oxygen and nitrogen separation, rare gas separation, separation of trace water in olefins and inorganic gases, and separation of sulfides. TDX-01 is made from polyvinylidene chloride as raw material, which is polymerized by suspension to obtain polyvinylidene chloride microspheres. After washing and drying, they are thermally decomposed at high temperature under the protection of inert gas.
Name: Shimadzu Fill Column
Model: TDX-01
Specification: 2m * 3mm
Maximum operating temperature: 240 ° C
Application: Separation and determination of air, carbon monoxide, methane, and carbon dioxide
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has developed and produced the "Shimadzu 2030 TDX-01 Chromatography Column", which has been installed on Agilent, Thermo Fisher, Varian, Bruker, and PE for the determination of methane, carbon monoxide, and carbon dioxide, achieving good results.
Applicable to:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
