变压器油色谱仪检测技术基于油中溶解气体的分析,通过对变压器油中溶解的烃类气体(如甲烷、乙烯、乙烷等)进行定性和定量分析,可以判断变压器内部的故障类型和严重程度。
浩瀚色谱(山东)应用技术开发有限公司,研制的《GDX-502色谱柱安装在安捷伦7890 》测定甲烷 (CH4 )、 乙烷 (C2 H6 )、 乙烯 (C2H4 )、 乙炔 (C2H2 )、
二氧化碳 (CO2 )的含量,柱效高,分离良好,结果满意。

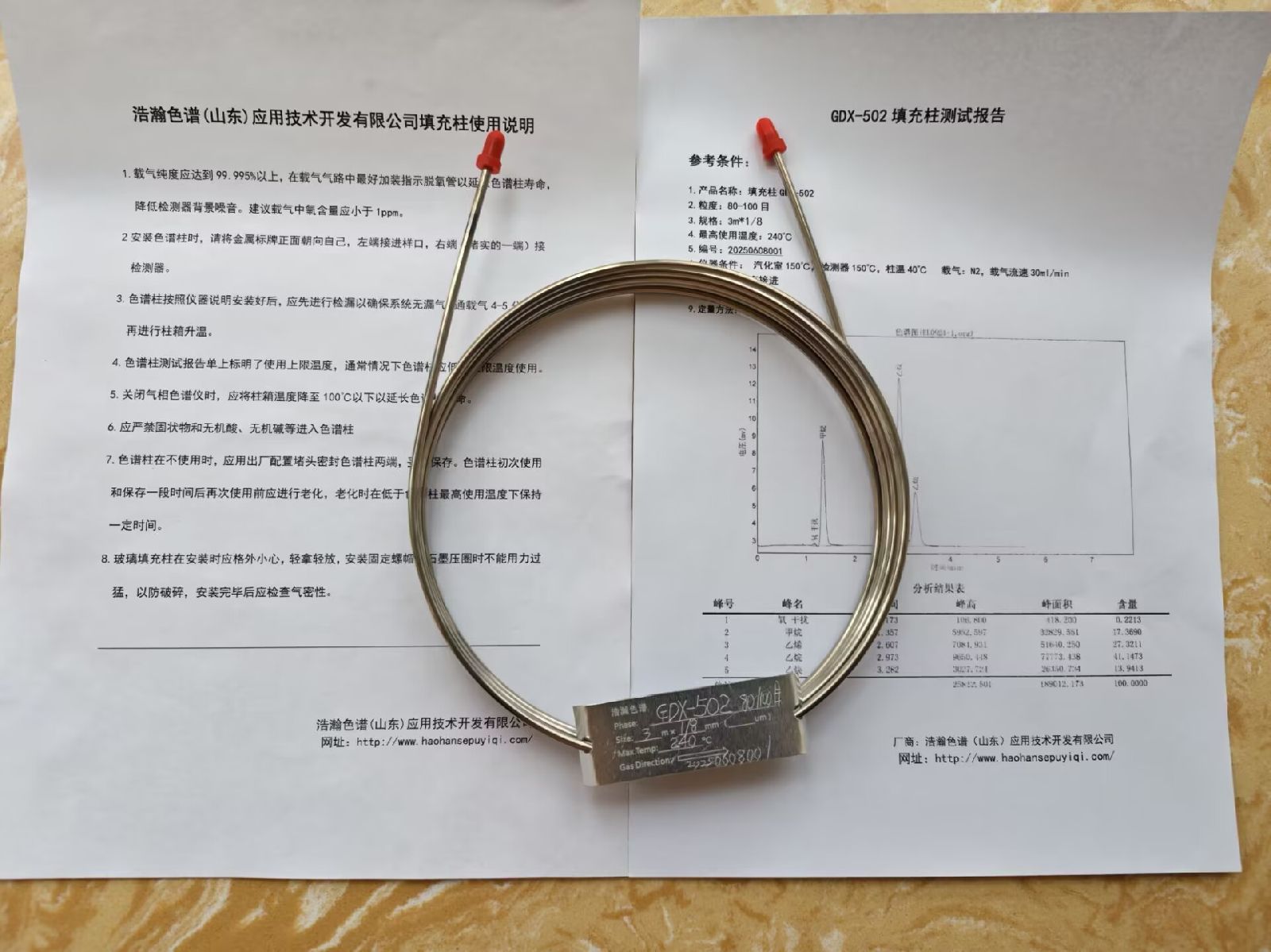

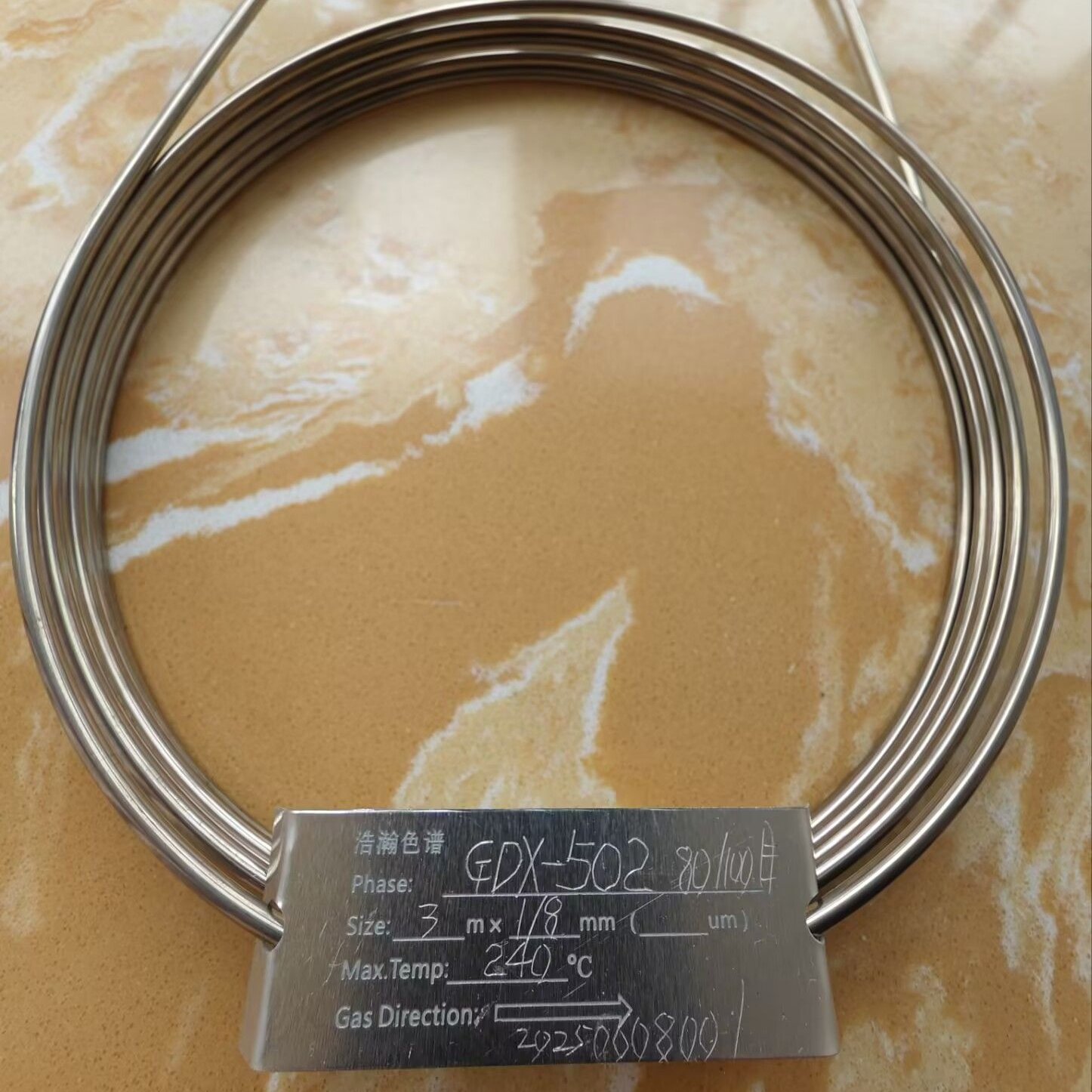

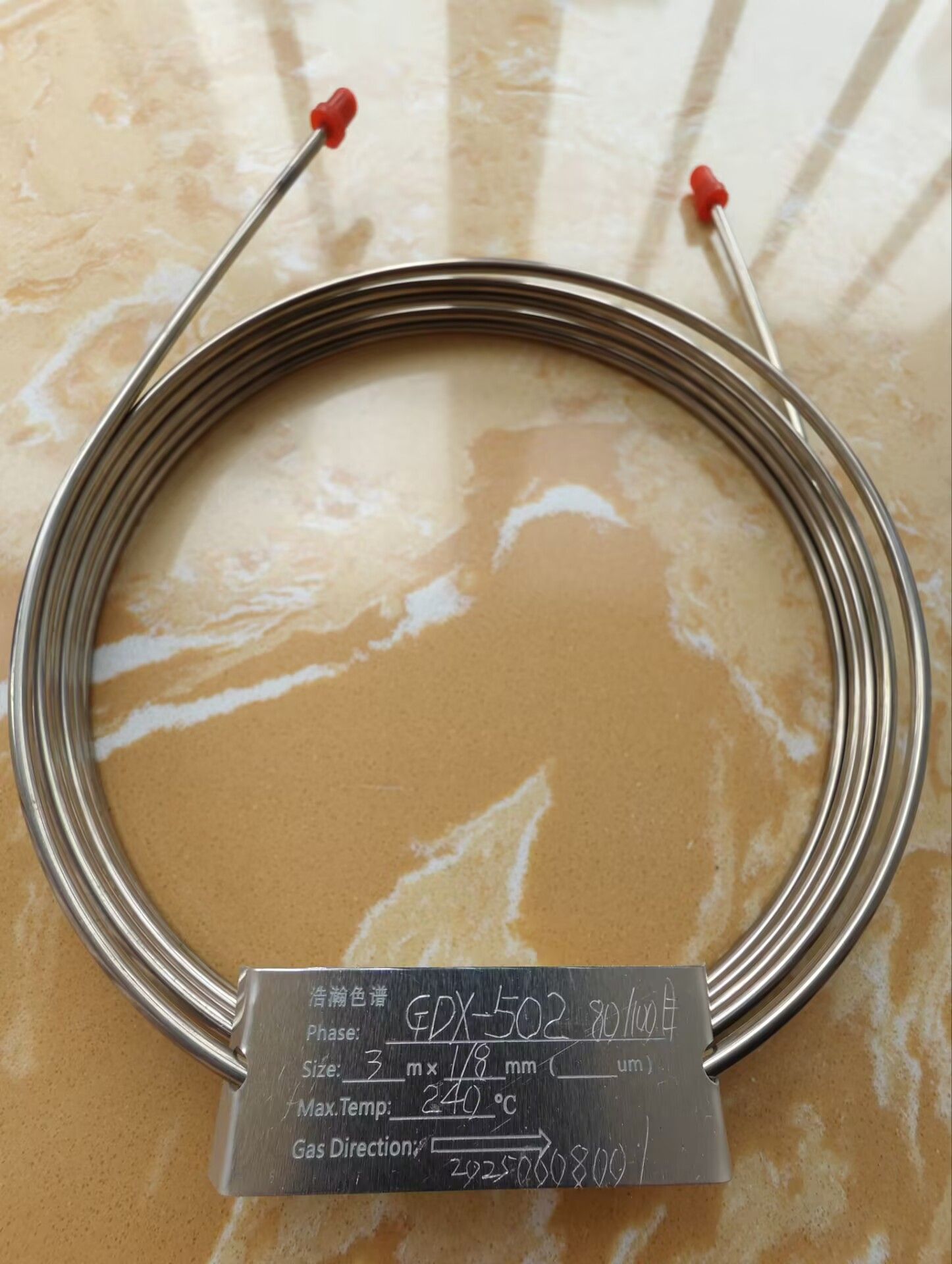

名称:GDX-502填充柱
规格:3m*1/8,80-100mesh
编号:20250608001
zui高温度:240°C
适用于:
安捷伦490在线/便携,4890,5890,6890,7820,7890,8860,8890
岛津GC-14C,GC-2010,GC-2014,GC-2030
赛默飞1310,1300,1610,1600
瓦里安3800系列
布鲁克PE580,590,680,690
磐诺A90,福立GC9790,华爱,天瑞,天美,GC7900,川仪,北分瑞利,东西电子,鲁南瑞虹,捷岛/科晓
The detection technology of transformer oil spectrophotometer is based on the analysis of dissolved gases in oil. By qualitatively and quantitatively analyzing the hydrocarbon gases (such as methane, ethylene, ethane, etc.) dissolved in transformer oil, the type and severity of faults inside the transformer can be determined.
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. developed the "GDX-502 Chromatography Column Installed on Agilent 7890" for the determination of methane (CH4), ethane (C2H6), ethylene (C2H4), acetylene (C2H2)
The content of carbon dioxide (CO2), high column efficiency, good separation, and satisfactory results.
Name: GDX-502 Filler Column
Specification: 3m * 1/8,80-100 mesh
Number: 20250608001
Zui high temperature: 240 ° C
Applicable to:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900, Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
