活性炭填料：通常为颗粒状（如20-60目）。它是一种多孔碳材料，具有巨大的比表面积和复杂的孔隙结构。
特点：对非极性或弱极性物质，尤其是大分子、色素、异味成分等有极强的吸附能力。
类型：可分为木质活性炭、煤质活性炭等，其孔径分布和吸附性能略有差异。
不锈钢柱管：通常由316L等优质不锈钢制成。
特点：机械强度高，耐高压，不易破裂，适合工业化规模使用。化学惰性相对较好，但对某些极端pH或卤化物溶液仍需注意。

浩瀚色谱（山东）应用技术开发有限公司，研制的《活性炭填充色谱柱应用岛津GC2030上》，分离氢，空气，CO，CO2，CH4，柱效高，分离良好，结果满意。


名称：不锈钢填充柱

规格：1M*1/8

型号：HH-Activated Carbon(60/80)

zui高温度：240°C

应用：氢，空气，一氧化碳，甲烷，二氧化碳的分离





适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓


Activated carbon filler: usually in granular form (such as 20-60 mesh). It is a porous carbon material with a huge specific surface area and complex pore structure.
Characteristics: It has strong adsorption capacity for non-polar or weakly polar substances, especially large molecules, pigments, odor components, etc.
Type: It can be divided into wood activated carbon, coal activated carbon, etc., with slight differences in pore size distribution and adsorption performance.
Stainless steel column tube: usually made of high-quality stainless steel such as 316L.
Features: High mechanical strength, high pressure resistance, not easy to break, suitable for industrial scale use. Chemical inertness is relatively good, but attention should still be paid to certain extreme pH or halide solutions.
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has developed the "Application of Activated Carbon Filled Chromatography Column on Shimadzu GC2030", which separates hydrogen and air, CO，CO2，CH4， High column efficiency, good separation, and satisfactory results.

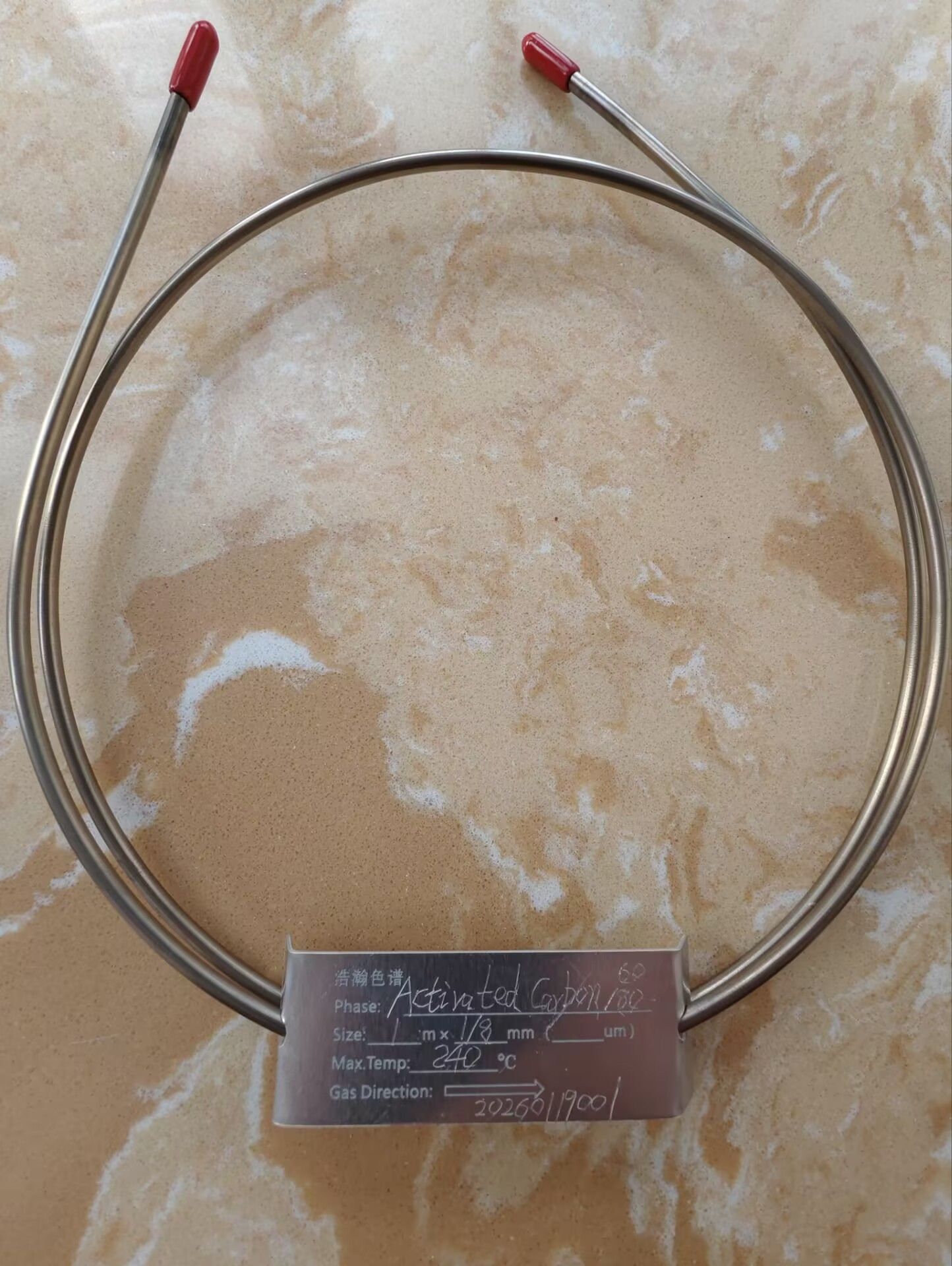

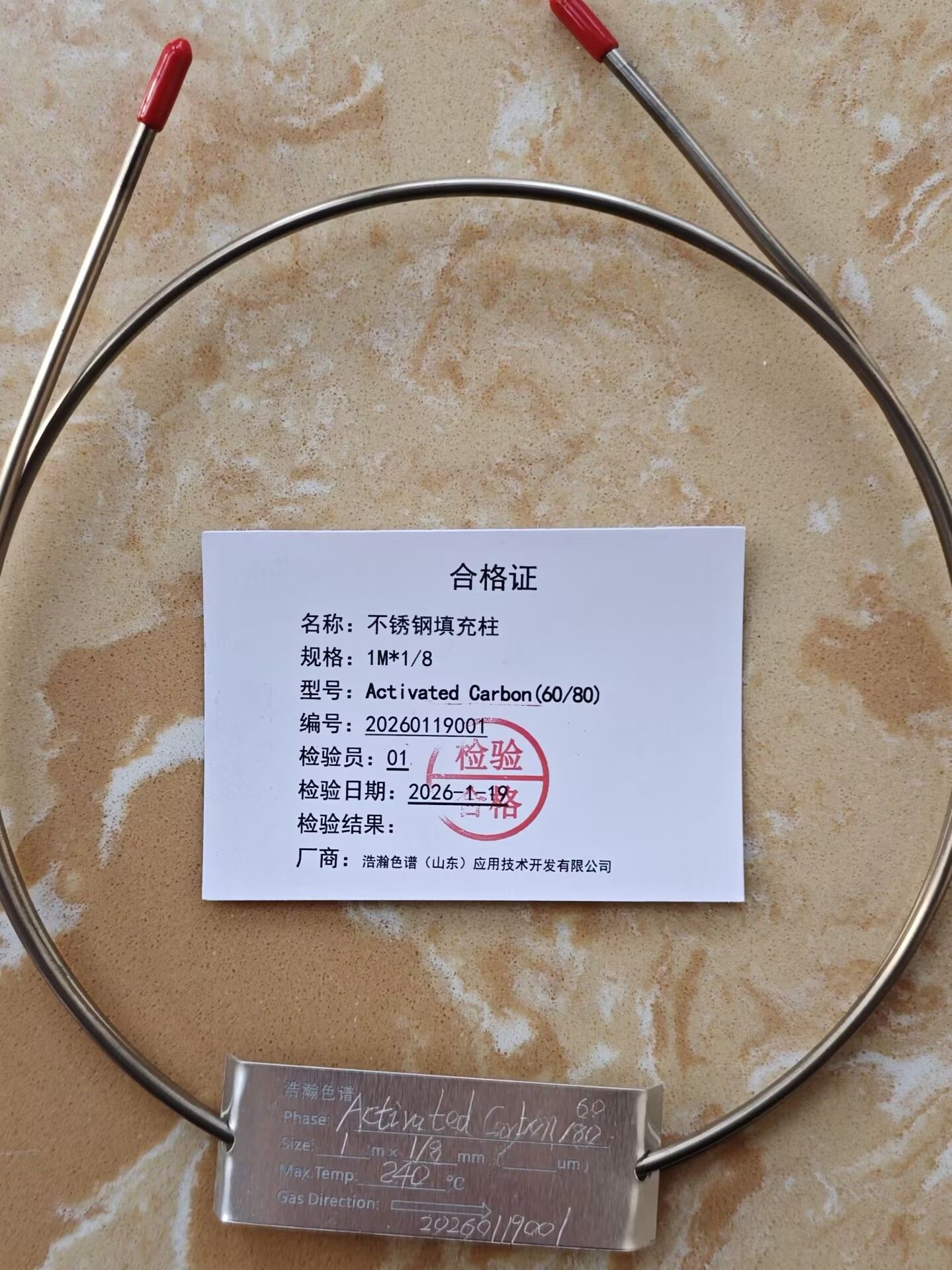

Name: Stainless Steel Filled Column
Specification: 1M * 1/8
Model: HH Activated Carbon (60/80)
Zui high temperature: 240 ° C
Application: Separation of hydrogen, air, carbon monoxide, methane, and carbon dioxide
Suitable for:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
